GK13 Series (600 Guideway)

General Description
This series of CNC pipe threading lathes are mainly designed for processing internal and external pipe threads, including metric, inch, module, DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.This series of lathe machines are widely used in industries like oil exploitation, minerals mining, chemical piping and geological prospecting. It is high-efficiency equipment for processing and repairing drilling pipes, drilling rods, thread couplings and so on.
Product Information

Standard Accessories

Siemens controller, NC turret, automatic lubrication, coolant pump, semi-shield


Optional Accessories

Fanuc or other brand CNC controller, quick-change tool post, hydraulic turret or power turret, hydraulic tailstock, full-shield


Features

Big spindle bore and double chuck to ensure processing of big diameter pipes

One-piece bed adopts high-strength iron to ensure rigidity and precision

Ultrasonic frequency quenched guideways ensure good wear-resistance

Carriage and guideway contact surfaces use Turcite-B to maintain accuracy

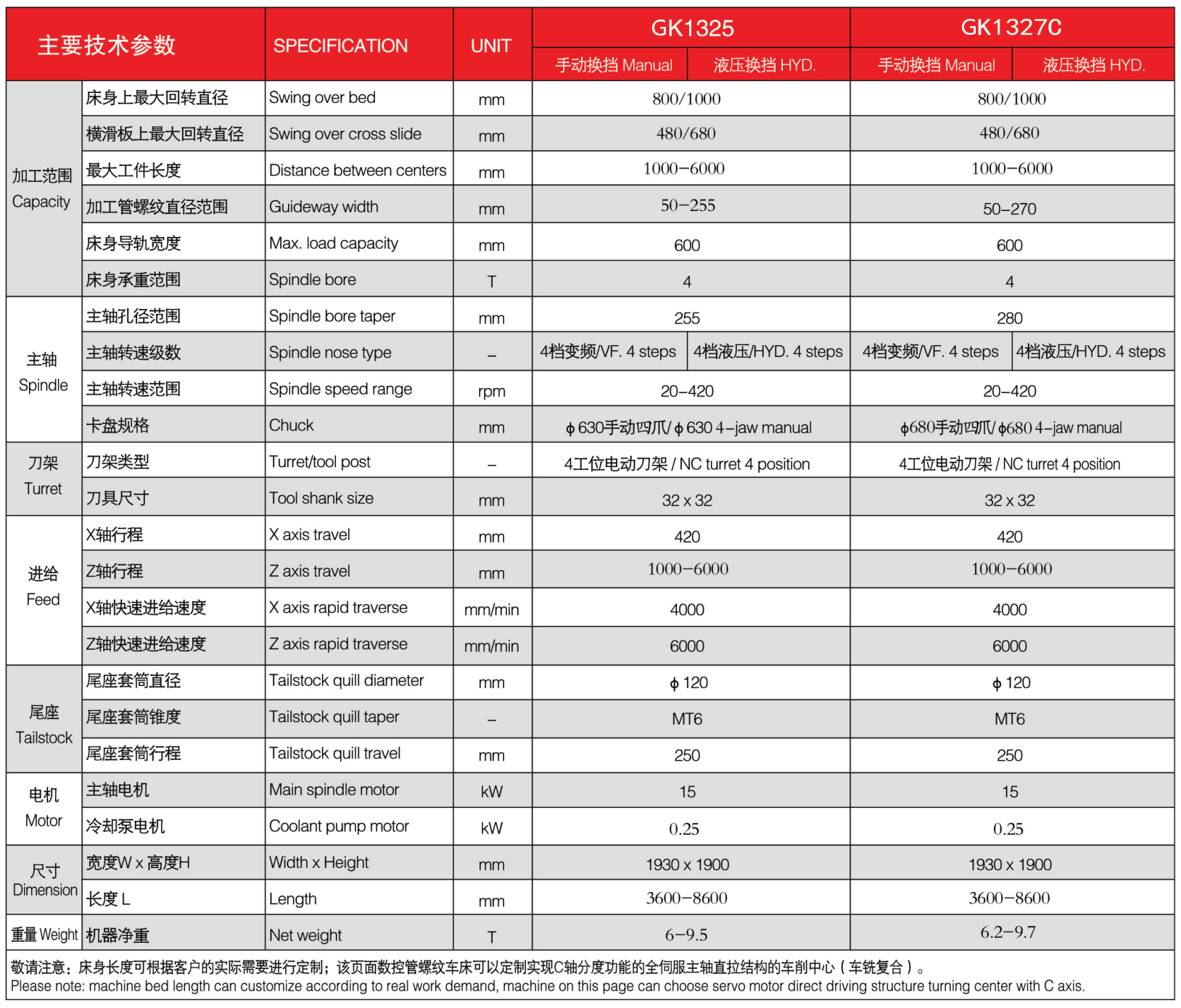

Technical Parameters
