PMK-V04 Portable Pneumatic Dot Peening Marking Machine
General Description
This portable pneumatic dot peening marking machine is specially designed for marking large heavy metal parts, such as vehicle chassis or engine VIN numbering.
The pneumatic model needs to connect air compressor to drive the marking head. You can choose the electromagnetic model as well based on the specific marking requirement, which does not need air supply.
Technical Data Sheet |
Marking Speed | 2-5 Characters(2x2mm)/s |
Stroke Frequency | 300 Times/s |
Marking Depth | 0.01 to 4mm (Vary To the Materials) |
Marking Contents | Alphanumeric Info, Data Matrix or Dot Matrix 2D Codes, Shift Codes, Barcode, Serial Number, Date, Vin Code, Time, Letter, Figure, Logo, Graphics and Etc. |
Stylus Pin Hardness | HRA92/HRA93 |
Marking Area | 140mmX80mm |
Package Dimensions | 580X335X417mm |
Marking Materials | Below HRC60 Metallic and Nonmetallic Materials. Above HRC60 Need Special Stylus. |
Repeat Accuracy | 0.02-0.04mm |
Power | 300W |
Work Voltage | AC 110V 60HZ or AC220V 50HZ |
Connection | USB and RS-232 |
Controller | Touch Screen Controller |
Power Type | Pneumatic |
Marking Directions | Up, Down, Left, Right, and the Circular Arc Surface Marking |
Gross Weight | 25KG |
| Packing List |
| No. |
Parts |
Remark |
Qty |
| 1 |
Marking
Machine |
Marking
Area 80*140mm |
1 set |
| 2 |
Controller |
Touch
Screen Controller |
1 set |
| 3 |
Magnetic |
|
1 set |
| 4 |
Marking
Pin |
|
2 set |
| 5 |
19
Core Cable |
Cable
Length 5m |
1 set |
| 6 |
Spares |
Controller
Power Line, Software CD, Belts and Pulley, Limit Switch, Print Button. |
1 set |

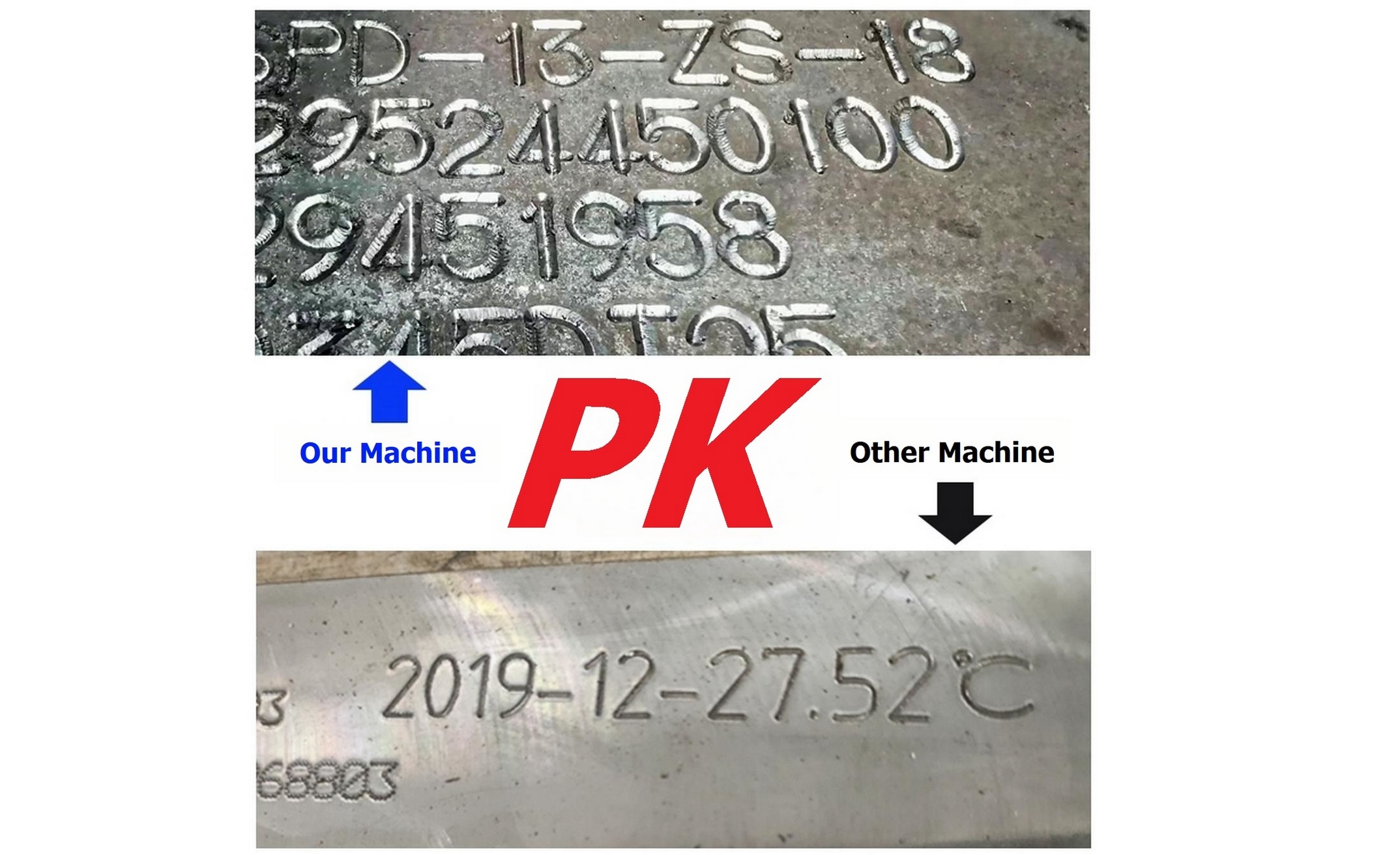

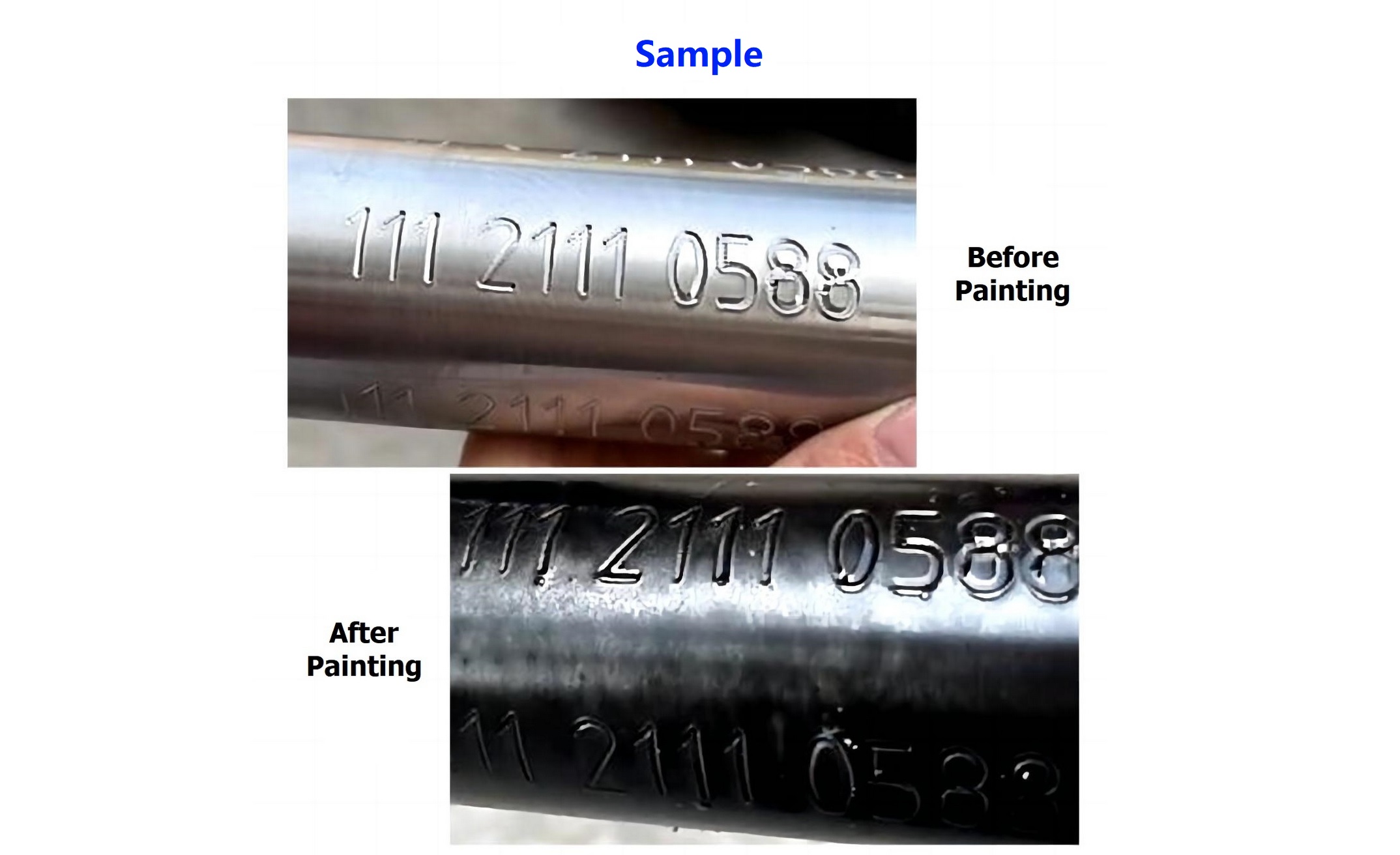

Applications
- Serial number (value, tee, elbow, batch, shift)
- 4 fonts supported: PLT, SLG, EMF, WMF
- Arabic numerals
- Alphanumeric (figure & letter)
- Graphics
- VIN code
- Time variables (year, month, week, day, shift)
- Date
- Barcode
- Ticket number
- Date Matrix/2D codes/Matrix size: 5x7, 9x13 and continuous line
- Logo marking
- Special symbols
- Database connection marking
and more
USB PC Controller and 7" LCD Controller
USB PC controller: you need to install marking software (ThorX6) on the computer. The software is with user-friendly interface. It enables to automate and simplify the user’s work to the maximum. Connection types: RS-232 and USB.
Integrated marking software: marking files can be entered or edited directly with the user-friendly controller interface. It is ideal for stand-alone marking system, no PC required. Thanks to its USB plugs, marking files can be uploaded from PC to the controller.
