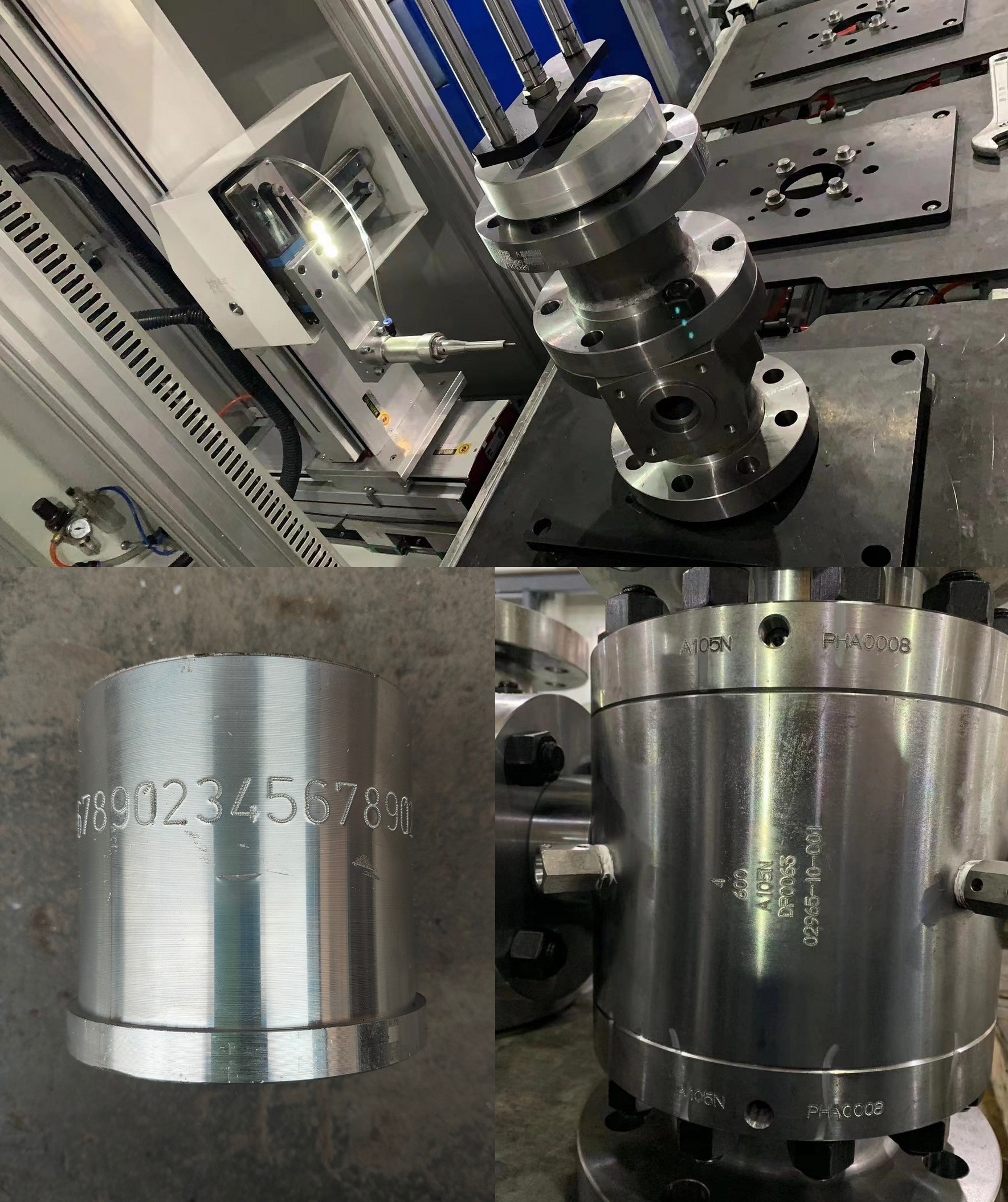

It is suitable for marking some small, easy-to-move flanges, directly on the work surface. It is equipped with a small rotating fixture which can hit the circumference. 4 mm high hardness needle makes deep marking. Even after being processed and painted, the mark is still clearly visible.

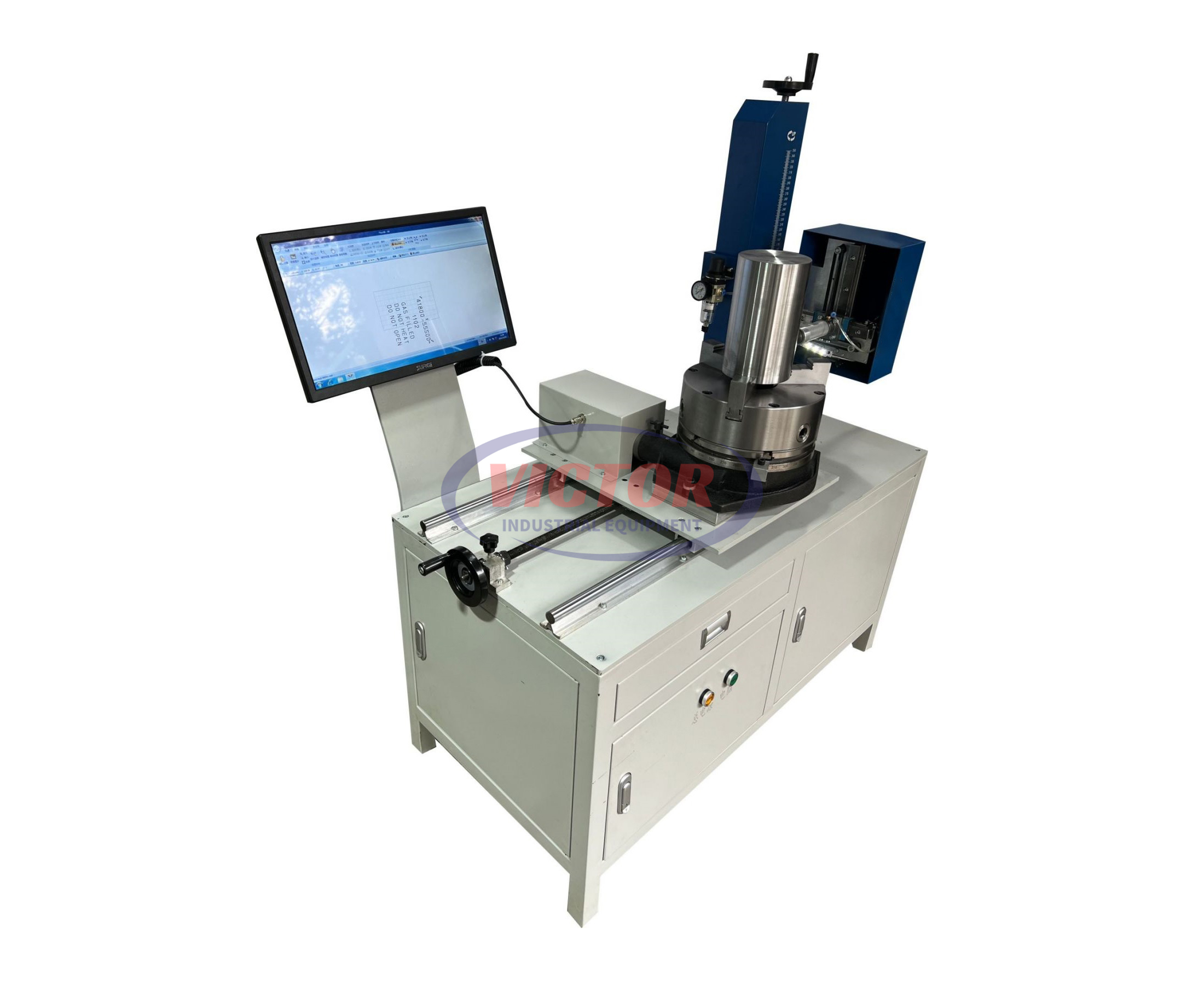

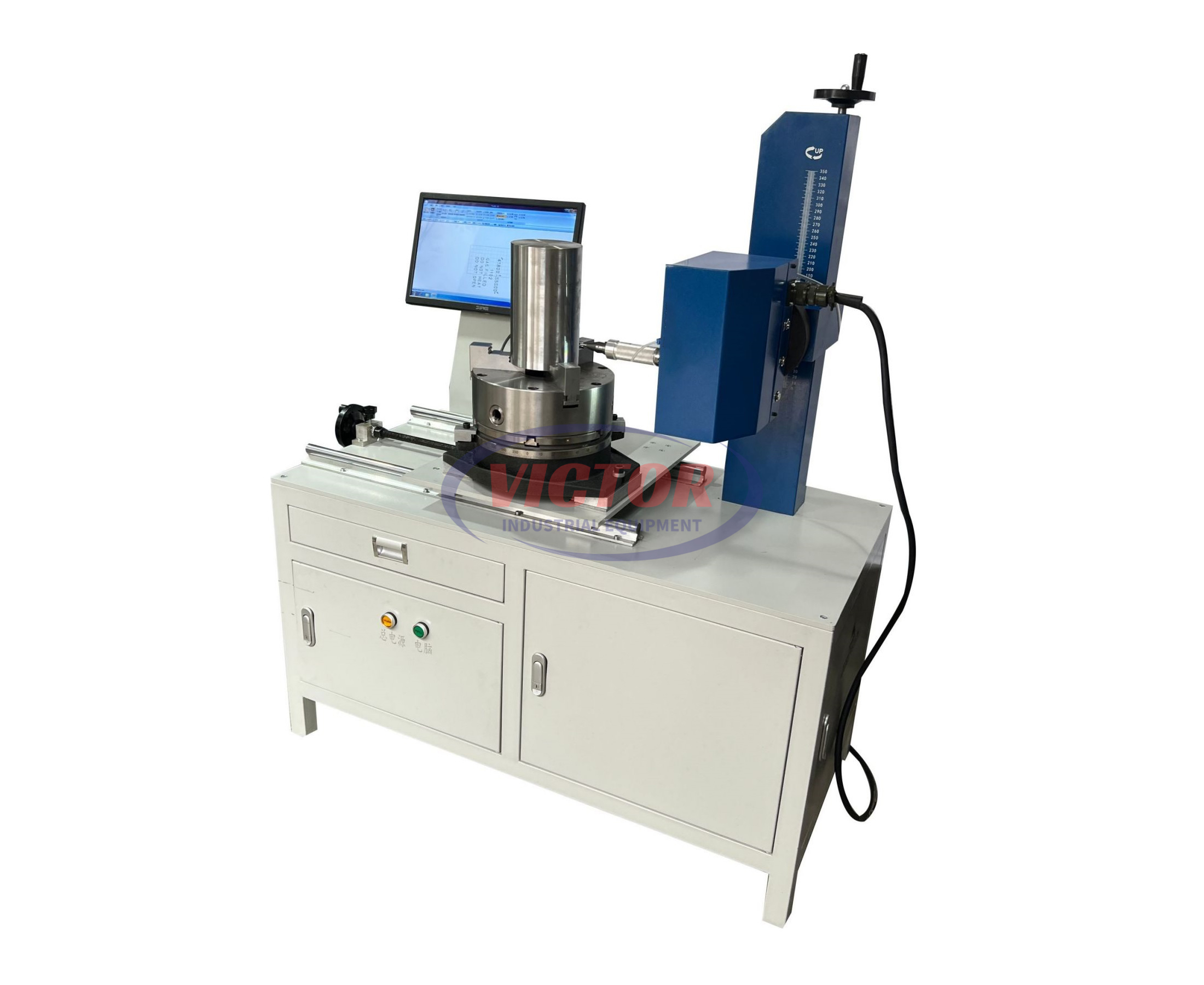

Suitable for larger, movable flanges. Equipped with a large horizontal rotating fixture, using a high-power American Leisai motor, it can drive a flange of 100-200kg for rotation marking. Specialize in heavy flanges. Through the ThorX6 control software you can directly edit and print content on the computer, easy to operate.
Large flange marking machine is also called portable hand-held marking machine. Its body is small and convenient. The marking head can be placed directly on the product to mark. Suitable for marking large flanges that are not easy to move. Equipped with ThorX6 touch screen controller, you can edit the content directly on the touch screen, easy to operate.
Standard controller requires a desktop or laptop computer. The marking software is installed on the computer.
Marking speed: 3-5 letters per second
Printing materials: metal and non-metallic materials with hardness less than HRC60, such as steel, stainless steel, iron, copper, aluminum and plastic. For materials with hardness above HRC60, diamond marking needle is required
Marking depth: 0.1-1.2mm (depending on materials)
Power supply: AC220V, 50Hz
Marking content: graphics, symbol, number, serial code, VIN code, logo, etc.
Air source pressure: 0.2-0.6mpa
