Pipe Leveling Machine LPM Series
General Description
LPM series pipe leveling machine is a professional machine for repairing thin-wall pipe end, pipe machining and can be directly used for welding or manufacturing pipes with high precision.
Portable leveling machine is widely used in welding of ultra-pure stainless steel pipe, in industries such as electronics, medicine, biochemistry and so on.
Features
- The machine is specialized in high-precision machining of thin-wall stainless steel pipe end.
- The end face is free from any burrs after the pipe is milled, and the vertical effect of the pipe end and the pipe axis is perfect.
- The structure is exquisite. The fixture, tool and pipe are easy to install and operate.
- Suitable for milling of any super-pure thin-wall stainless steel pipe end.
- The use of a special-coated tool ensures the highest accuracy for the end-surface processing. It has a long service life, and is not easy to wear.
- The DC version charging motor and AC plug-in motor are available for you to choose.
- The machine can be installed with base bracket, providing convenience for straight-plugged installation.
- The use of millimeter gauge feeding ensures the highest accuracy of end-face frame quality.
Driving Options
AC plug-in motor:
The imported Metabo motor of 1300W with high performance is adopted.
Voltage of 220V, with strong power,
The machine is suitable for plentiful pipeline-flattening operations.
DC charge-type lithium battery:
The rechargeable motor with Bosch lithium battery is used
The battery adopts high-capacity battery of 18V 1.5AH
The machine contains two original batteries, one for use and one for standby application.
The machine is compact, flexible and convenient to use.
Technical Parameters
Item | Unit | LPM-1.0 | LPM-1.5 | LPM-2.0 | LPM-2.5 | LPM-4.5 |
Cutting Range | mm | 3-25.4 | 6.35-38.1 | 4.76-50.8 | 6.35-63.5 | 6.35-114.3 |
Inch | 1/8”-1.0” | 0.125”-1.5” | 0.1875”-2.0” | 0.25”-2.5” | 0.25”-4.5” |
Maximum Cutting Wall Thickness | mm | 3 | 3 | 3 | 3 | 10 |
Rechargeable Type (DC) Motor Power | w | 300 | 300 | 300 | 300 | / |
Rechargeable Type (DC) Battery Voltage | V | 18.8VDCLi | 18.8VDCLi | 18.8VDCLi | 18.8VDCLi | / |
Battery Capacity | h | 2.0 | 2.0 | 2.0 | 2.0 | / |
Blade Speed | rpm | 350 | 400 | 400 | 400 | 140 |
Plug-In Type (AC) Power Supply Voltage | V | 220 | 220 | 220 | 220 | 220 |
Plug-In (AC) Motor Power | W | 1300 | 1300 | 1300 | 1300 | 1300 |
Total Weight | kg | 4/12 | 4/13 | 5/15 | 6/15.5 | 25 |

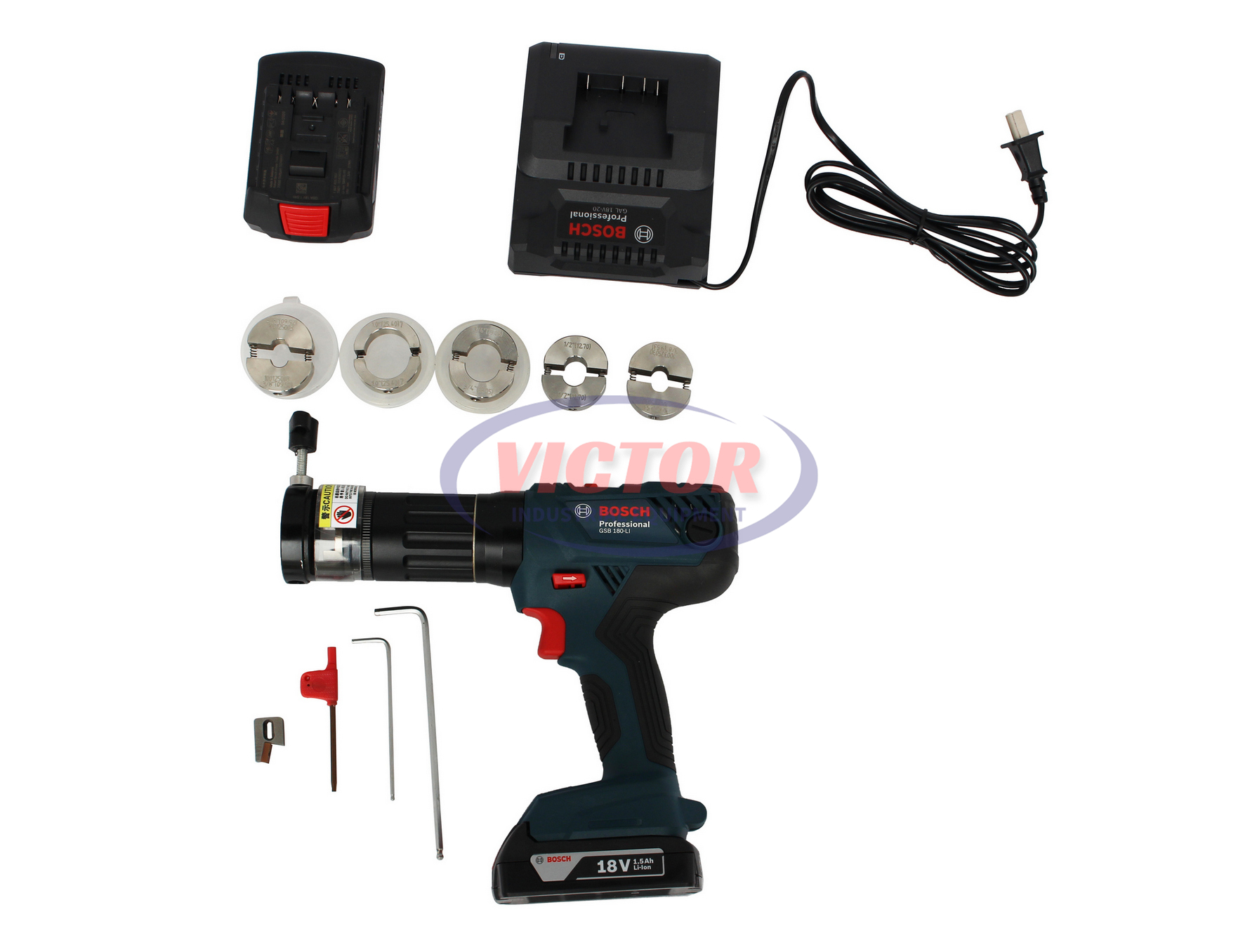

Packing List
Rechargeable Type:
An LPM-1.0DC machine includes the following parts:
Serial No. | Title | Serial No. | Title |
1 | Blade 2pcs | 5 | Spare pressure knife screw 1pc |
2 | Hexagonal socket head wrench 4mm | 6 | Crossed screwdriver 1pc |
3 | Charger 1pc | 7 | 5 sets of clamps |
4 | Spare battery 1 piece | 8 | One instruction manual |
Plug-in Type:
A plug-in LPM-2.0AC machine includes the following parts:
Serial No. | Title | Serial No. | Title |
1 | Blade 2pcs | 5 | Crossed screwdriver 1pc |
2 | Hexagonal socket head wrench 4mm | 6 | 5 sets of clamps |
3 | One stand | 7 | One instruction manual |
4 | Spare pressure knife screw 1pc | | |
Above is the standard configuration. For additional accessories, please contact us.
