Planetary Pipe Cutter

General Description

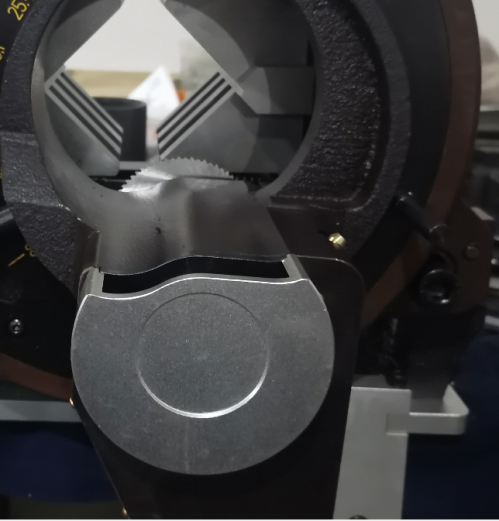

Planetary pipe cutter can save space with easy operation.You can fix the pipe on the "self aligning" clamping device, the pipe will not be deformed, the cutting speed can be adjusted quickly according to the diameter of the pipe. Hold the cutting head around the pipe, rotate the toothed blade to cut the pipe without burr or deformation as vertical edge. Cutting sanitary stainless steel clean pipe has unique advantages, which is an ideal choice for direct welding of stainless steel pipe after cutting in beer, beverage dairy, pharmaceutical, daily chemical, semiconductor optoelectronics, biology, chemical, oil and gas, water treatment, shipbuilding and electric power. It can realize cutting groove of steel pipe with high efficiency and good quality.

sales@victor-industrial.com +86-152 5811 7626

Product Information

Advantages

Planetary pipe cutter has the following advantages:

1. Adjustable motor speed, different speed can be selected according to different wall thickness.

2. The blade can cut from inside to outside only at one optimal position.

3. The blade can be used in AXXAIR CC120 and GF+ pipe cutting machine.

4. High verticality of cutting section can be used for automatic welding after cutting.

5. Multi-point clamping can ensure that the pipeline is not deformed.

6. Fast pipe diameter adjustment can be completed in a few seconds.

7. The motor comes with air cooling system and temperature control protection system, making the motor durable.

8. Planetary special beveling knife can be used for pipe beveling (except 3 inches).

Technical Parameters:

Cutting range: 12.7-76.2mm

Cutting wall thickness: 1-3mm

Motor power: 1300W

Motor brand: Metabo

Voltage/frequency: 220V/50HZ

Blade mode: Manual

Clamping method: Manual clamping, automatic centering

Cutting speed: Adjustable

Cutting material: Stainless steel, carbon steel, alloy steel, etc.

Clamping length: ≥25cm

Cutting precision: End verticality within +/-10s

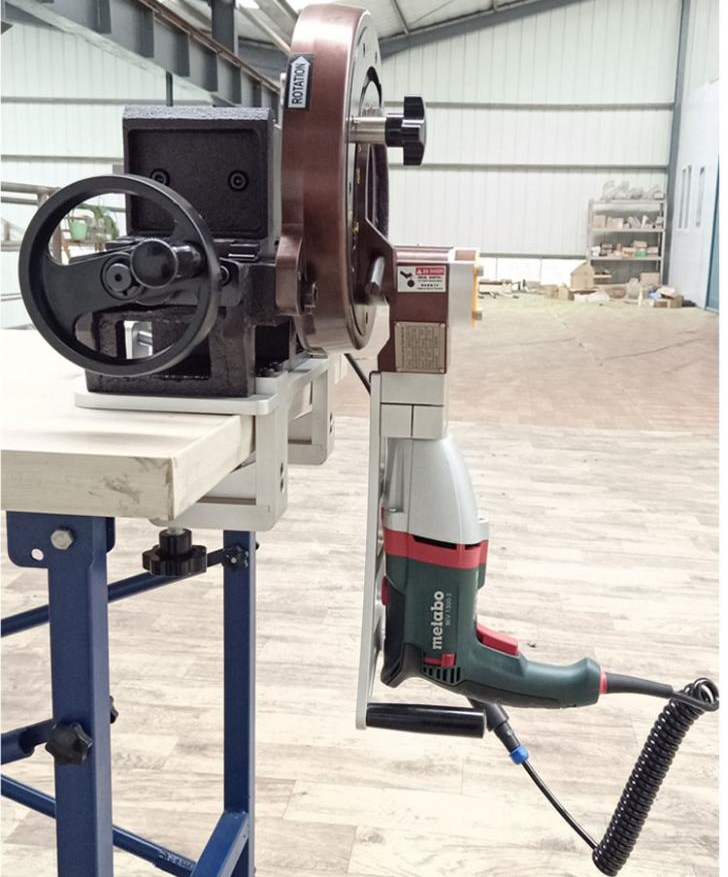

Working mode: It is fixed on the work table, and after clamping the steel pipe, the cutting blade or beveling blade can be selected for processing.

Net weight: 38.5 Kg

Length, width and height: 600*420*540mm

Packing: Flight case

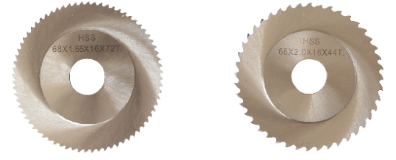

Cutting Blade:

HSS series special blade can be used for German +GF+, and French AxxAIR pipe cutting machine, with superior tool steel and cobalt alloy steel by special process, which can cut all kinds of standard metal materials.

Other Details:

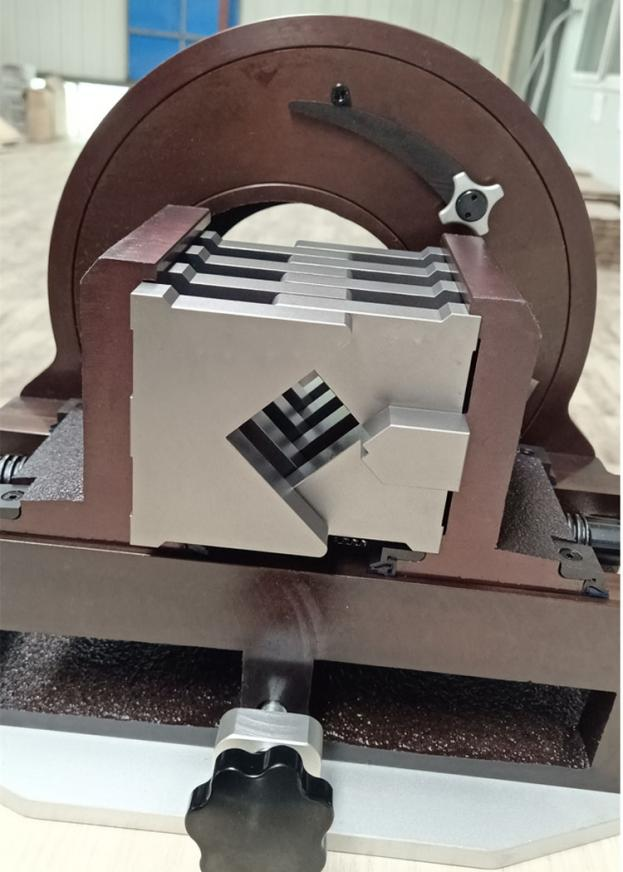

Wide range of fixtures, automatic alignment design

Compass handle for easy clamping

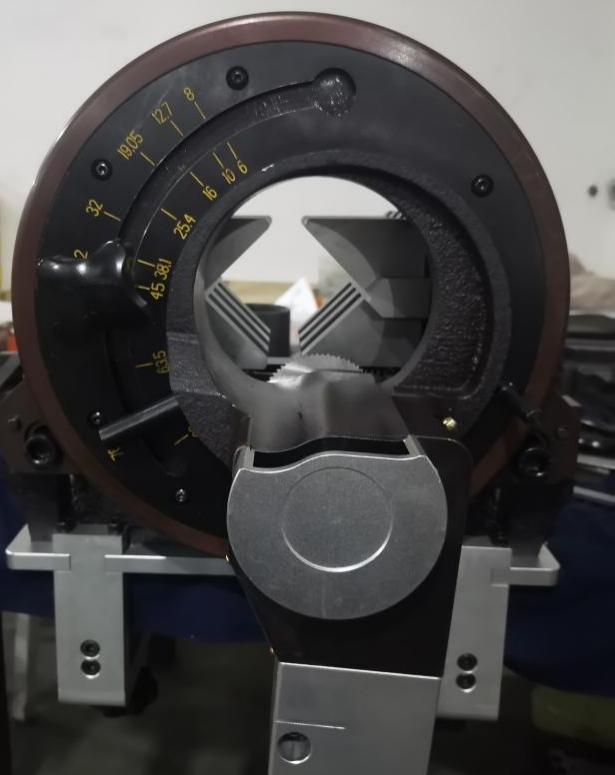

Face plate with scale ruler, easy blading

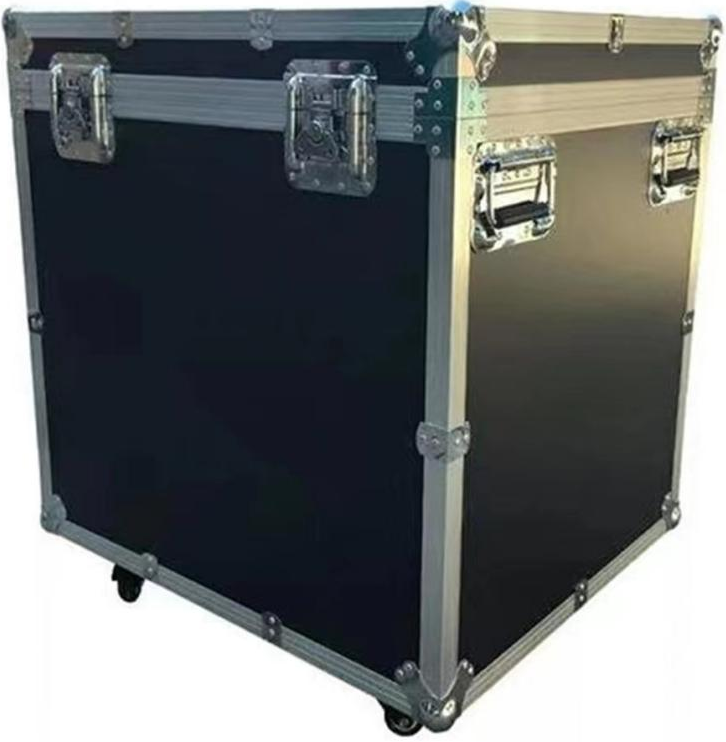

Flight packing cases

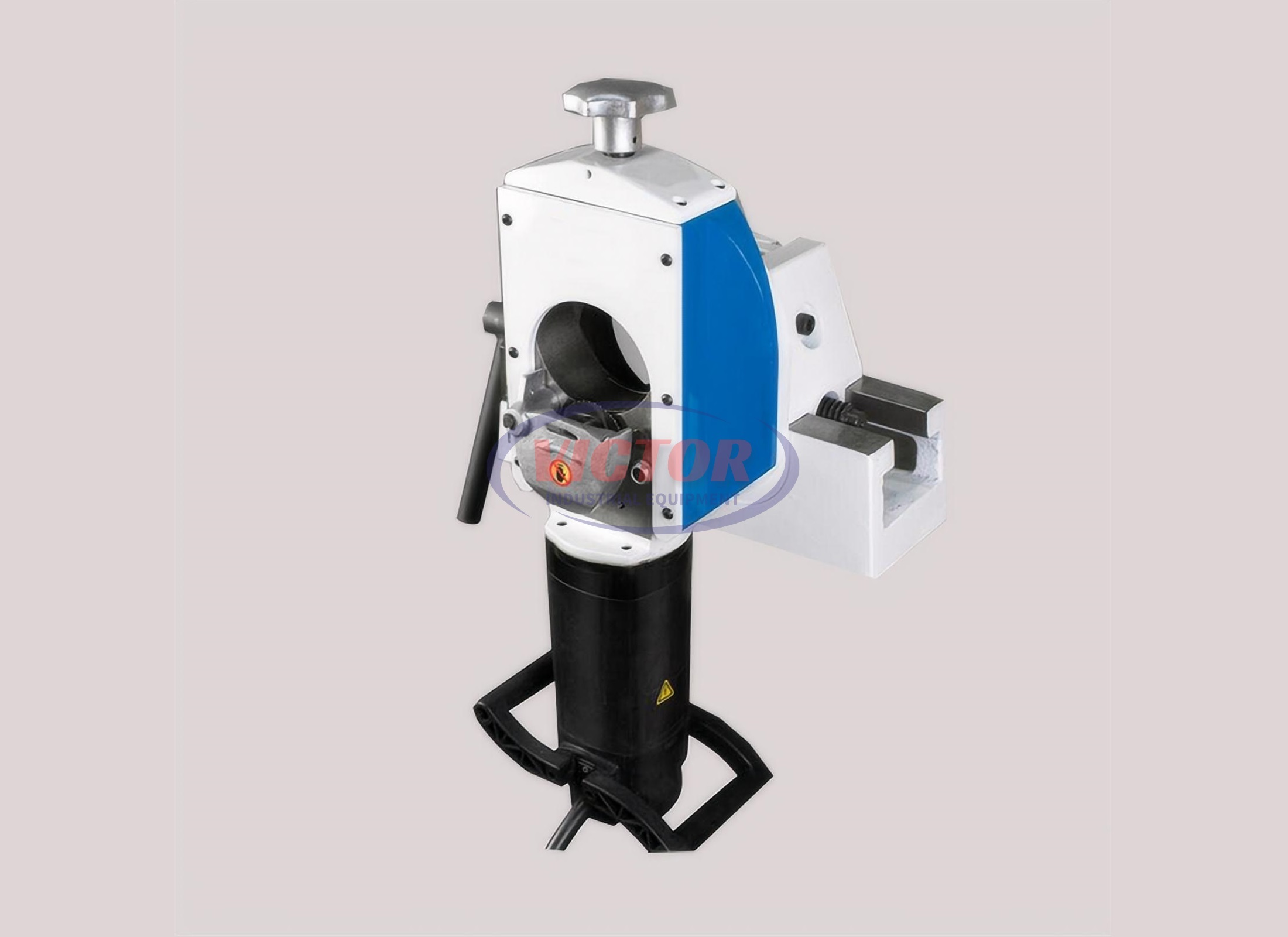

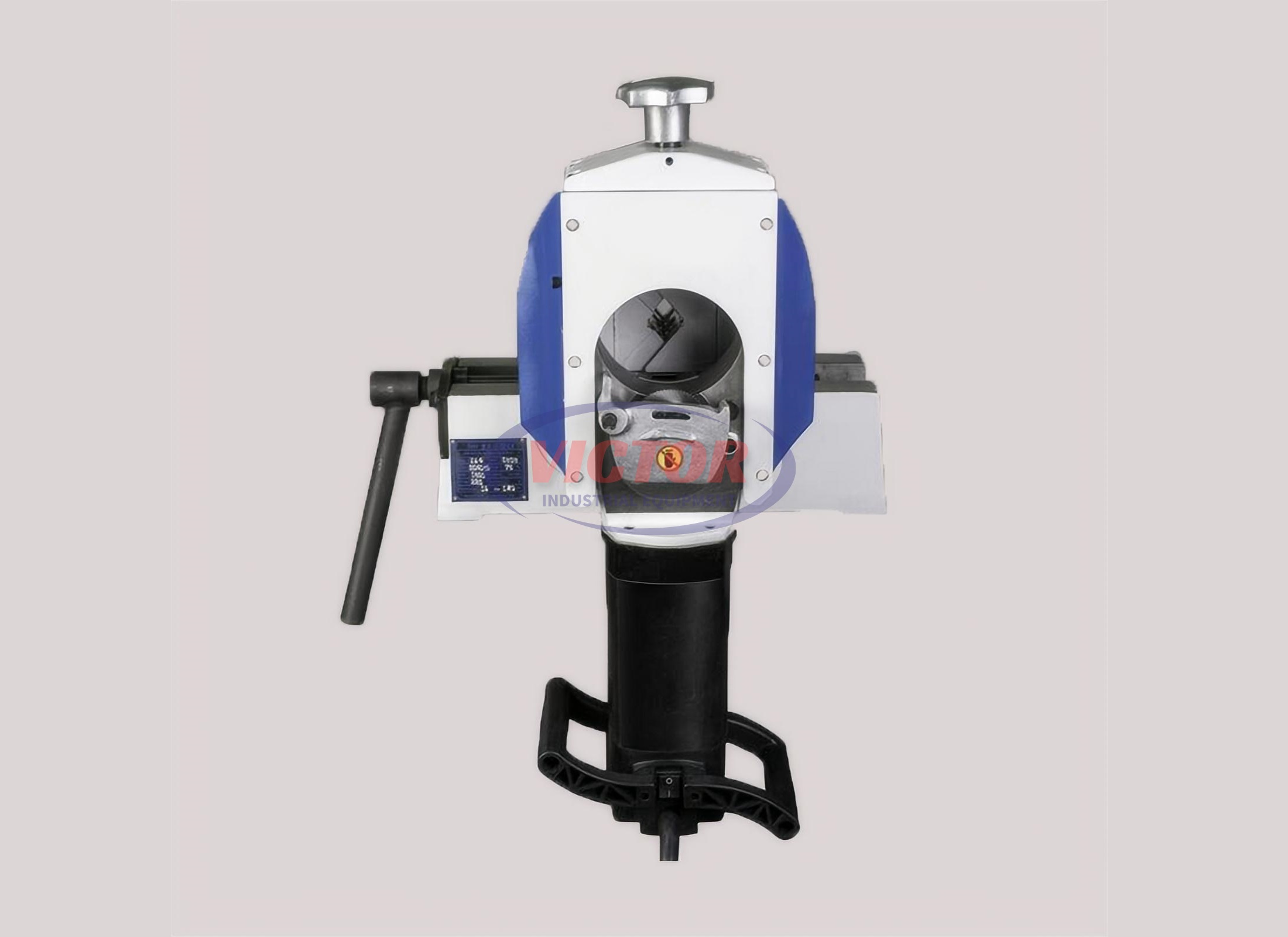

Prev：Split Frame Pipe Cutting & Beveling Machine
